DRFMS Hospital – MEPF Clash Coordination

Built In BIM was commissioned to develop accurate LOD 300 MEPF (Mechanical, Electrical, Plumbing, and Fire) models for the DRFMS Hospital project in India. Using Navisworks, our team performed comprehensive clash detection and coordination, delivering a fully integrated and constructible model that supported smooth on-site implementation and minimized conflicts during construction.

  • Discipline: Mechanical (MEPF)
  • Location: India
  • Scope of Work: LOD 300 MEPF Modeling with Clash Coordination in Navisworks

Problem

Hospitals are complex facilities with dense MEPF systems routed through limited ceiling and shaft spaces. Without proper coordination, such projects often suffer from:

Interdisciplinary clashes (especially between HVAC, electrical, and plumbing systems)

Costly on-site rework

Delays due to lack of spatial planning

Challenges in maintaining MEPF system integrity during construction

Challenges in maintaining MEPF system integrity during construction The client needed a solution that would ensure efficient system routing while avoiding last-minute site issues.

Solution

Built In BIM developed LOD 300 MEPF models using BIM-authoring tools, followed by detailed clash coordination in Navisworks. Our process included:

01

Creation of discipline-specific MEPF models with accurate spatial allocation

02

Integration of models into a federated environment

03

Multiple clash detection and resolution cycles using Navisworks

04

Regular coordination meetings and reports for stakeholder alignment

05

Adjustments to routing and component placement based on actual site constraints

The emphasis was on delivering a fully coordinated model that aligned with the architectural and structural elements of the hospital.

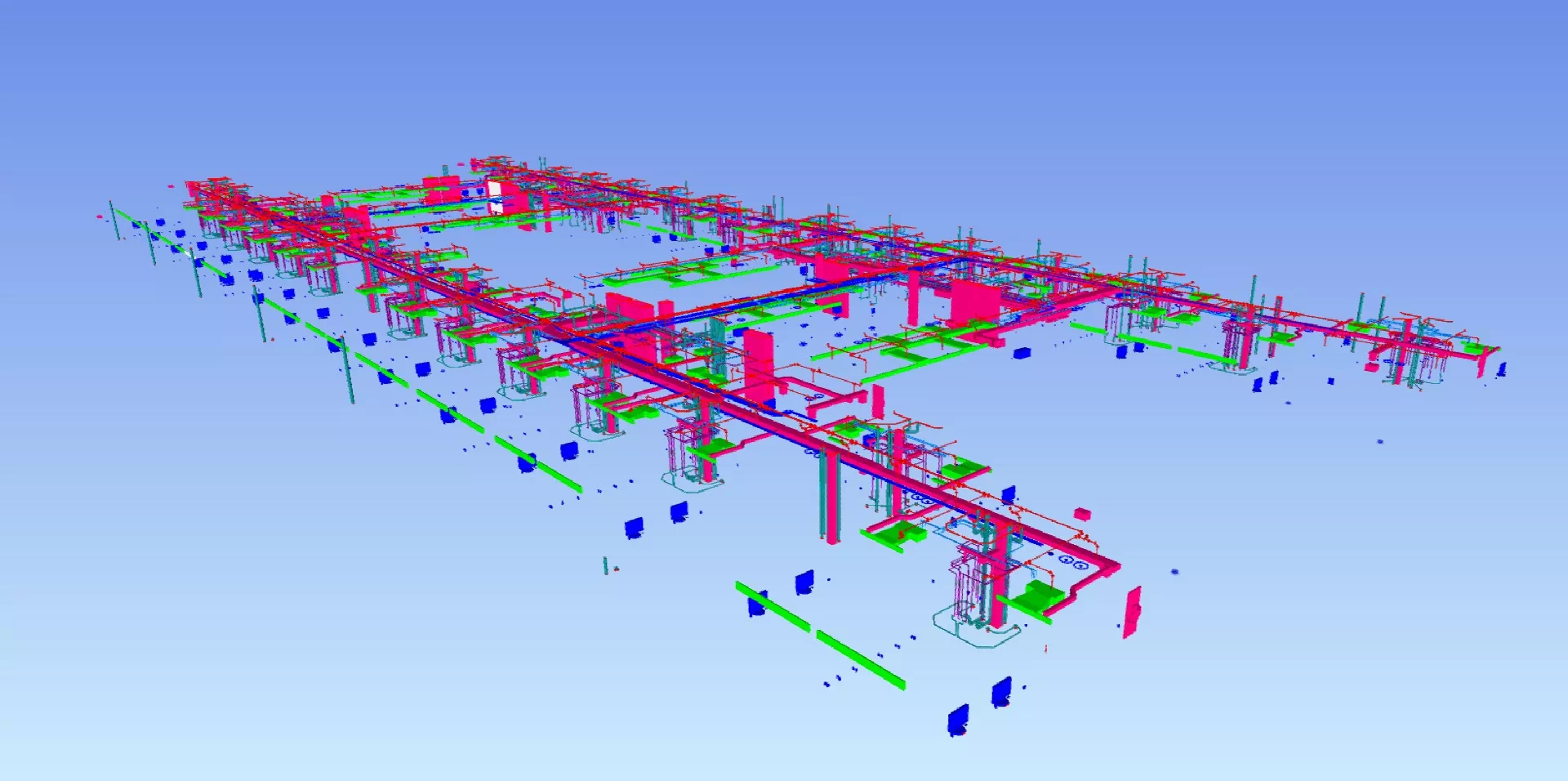

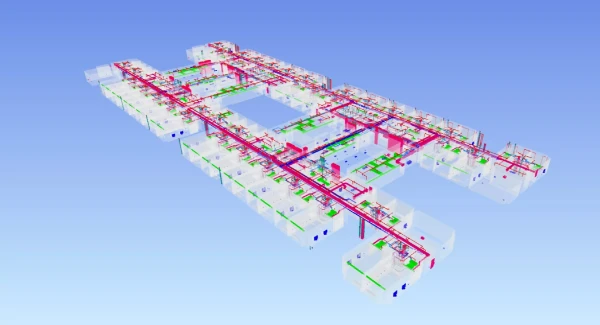

Gallery

Outcome :

The coordinated BIM model delivered several key benefits:

  • Zero Critical Clashes: Major design clashes were resolved virtually before construction began.
  • Improved Site Efficiency: Installation teams worked from a clear, conflict-free model, reducing downtime and confusion.
  • Reduced Cost Overruns: Avoiding rework and site changes helped maintain the budget.
  • Higher Quality Deliverable: The LOD 300 model provided a reliable base for further design detailing and construction sequencing.

Built In BIM’s contribution ensured that the DRFMS Hospital project moved forward smoothly, with confidence in the accuracy and reliability of MEPF systems integration.
